RS1E200BNTB
Manufacturer:
Rohm Semiconductor
Mfr.Part #:
RS1E200BNTB
Datasheet:
Description:

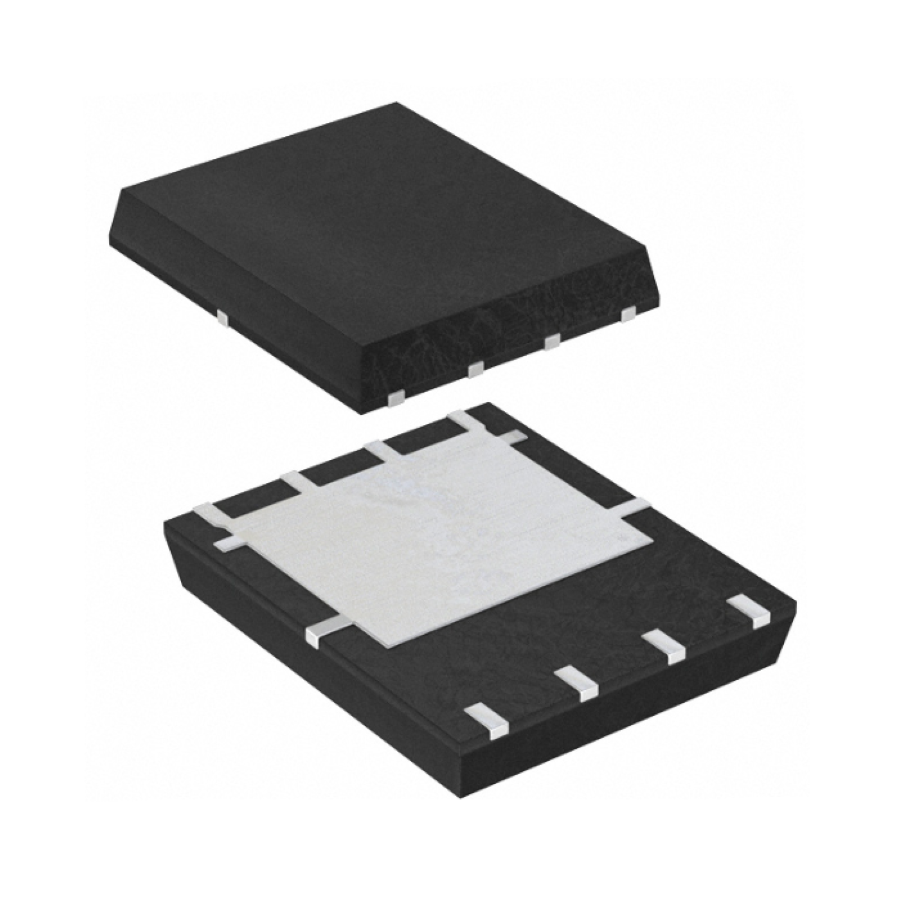

MOSFETs HSOP-8 SMD/SMT N-Channel number of channels:1 25 W 30 V Continuous Drain Current (ID):20 A 59 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 8 |
| Resistance | 2.8 mΩ |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Number of Terminals | 8 |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Max Power Dissipation | 3 W |
| Power Dissipation | 25 W |
| Number of Channels | 1 |
| Input capacitance | 3.1 nF |
| Continuous Drain Current (ID) | 20 A |
| Rds On Max | 3.9 mΩ |
| Drain to Source Voltage (Vdss) | 30 V |
| FET Type(Transistor Polarity) | N-Channel |
| Gate Charge | 59 nC |
| Drain to Source Resistance | 2.8 mΩ |
| Gate to Source Voltage (Vgs) | -20 V, 20 V |
| Drain to Source Breakdown Voltage (Vds) | 30 V |
| Gate to Source Threshold Voltage | 1 V |
Stock: 328
Distributors
pcbx
pcbxUnit Price$0.40694
Ext.Price$0.40694
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.40694 | $0.40694 |
| 10 | $0.37019 | $3.70190 |
| 25 | $0.35192 | $8.79800 |
| 50 | $0.33455 | $16.72750 |
| 100 | $0.31803 | $31.80300 |
| 300 | $0.28321 | $84.96300 |
| 500 | $0.25220 | $126.10000 |
| 1000 | $0.22741 | $227.41000 |
| 3000 | $0.19670 | $590.10000 |
| 5000 | $0.17013 | $850.65000 |
| 10000 | $0.16586 | $1658.60000 |
